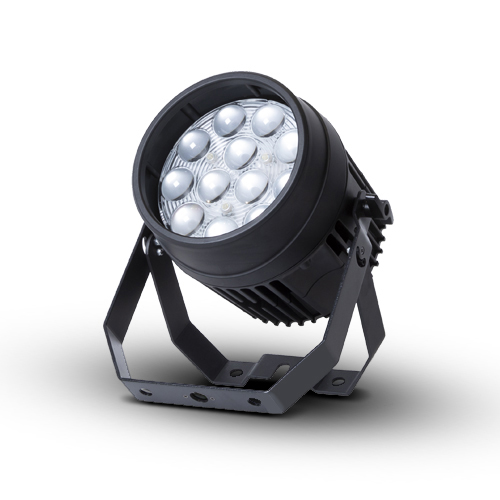

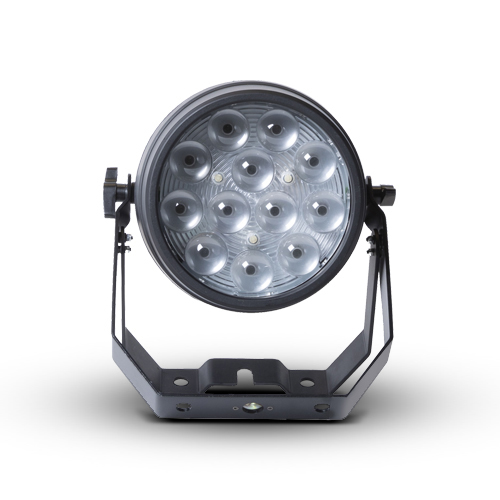

IP20-rated LED and backlight system with built-in programs and master/slave DMX channels
LED system: | 12 x 10W RGBW LEDs |
Backlight system: | 21 x RGB 5050 SMD |
Control mode: | Auto/ built-in programs, master/slave, DMX |
PWM backlight: | 3.3KHz |
Output: | 27700 lux (10°) |
DMX channels: | 6, 10, 14 channels |
Dimmer: | 0-100% |
Strobe: | 0-20Hz |
Beam angle: | 5°- 60° |
IP rating: | IP20 |
Housing: | Die-cast powder coated aluminum |
