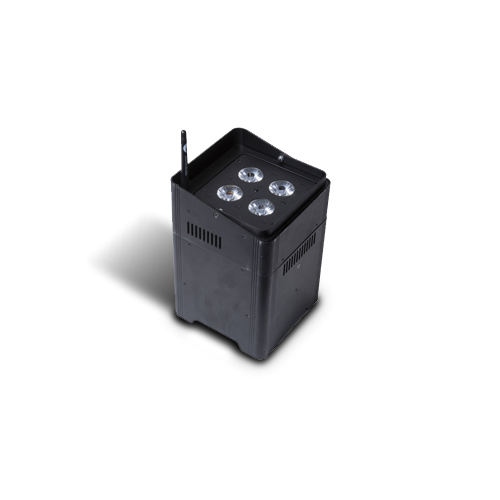

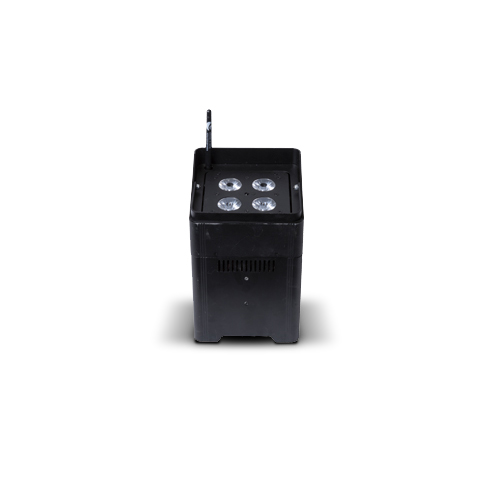

VBAT 684
4-in-1 12W RGBW light source chips with 15° beam angle, 50,000 hours rated life and IP grade 20
Specifications
| Beam angle: | 15° |
| Light source chips: | 4-in-1 12W RGBW |
| LED quantity: | 4 |
| Rated life: | 50,000 hours |
| Color mixing: | RGBW |
| Channel number: | 4/6/8 channels |
| Data protocol: | DMX 512 |
| Display function: | LED |
| DMX input/output: | 3-pin |
| Style: | Fan+ radiator |
| IP rating: | IP 20 |
| Permitted ambient temperature: | -20 - +450C |
| Permitted ambient humidity: | 75% |
| Max power (100V): | 68W |
